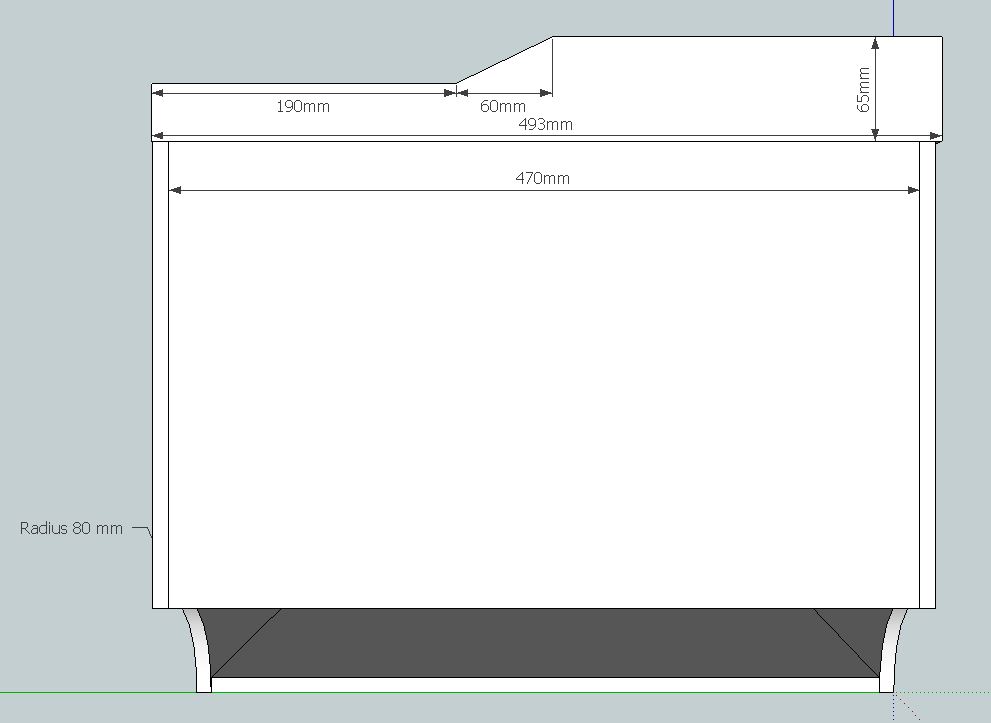

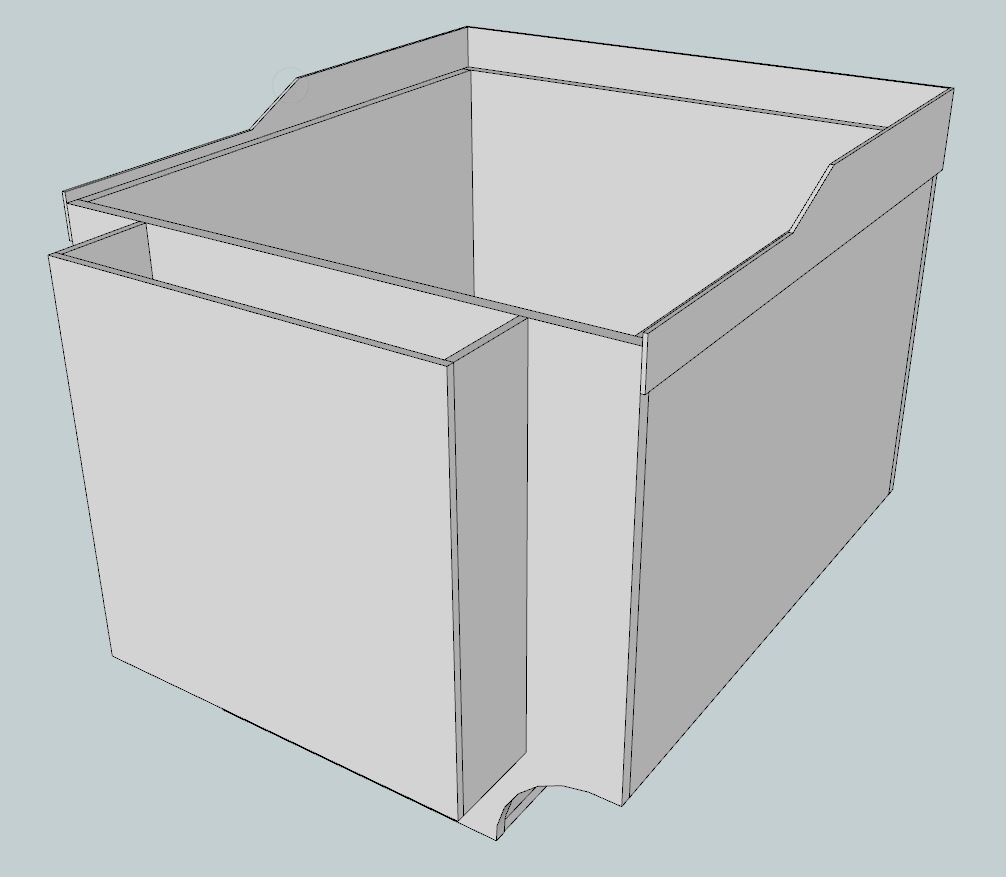

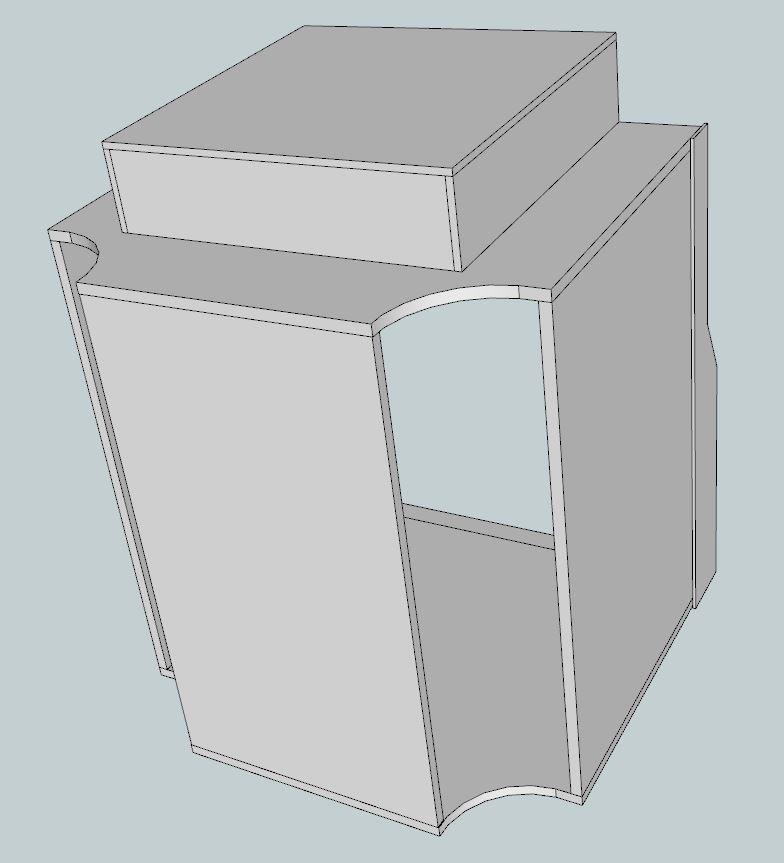

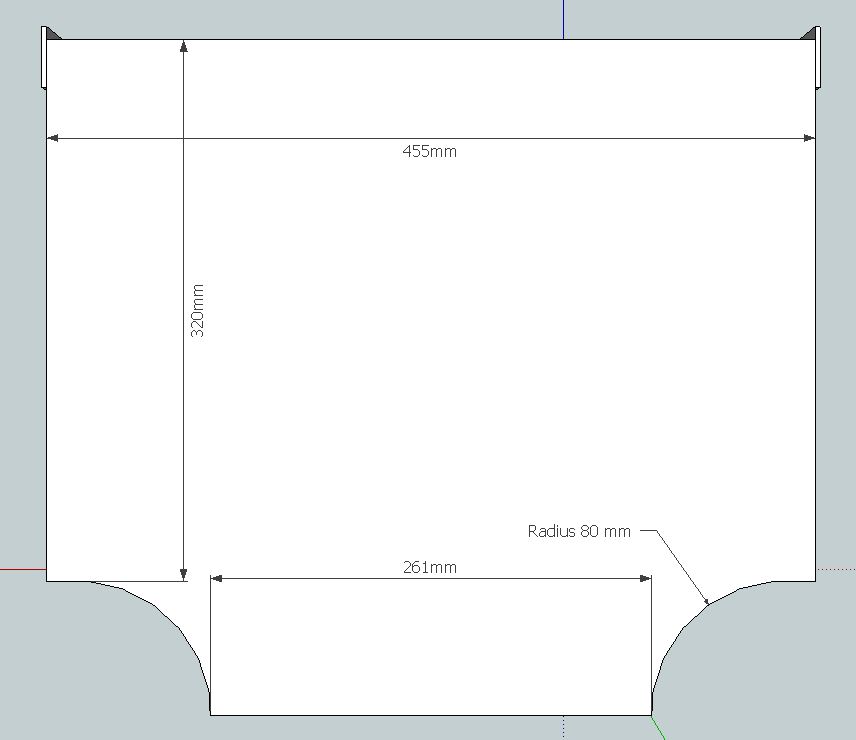

The pedestal box was made from 10 mm MDF. I used a paper template to mark and cut out the rounded edges. I didnt't install dividers or supports for the panels yet to make them exactly as I will need them when I know the measurements of the panels.

For the fire panel box I used 6 mm plywood. I installed wooden supports so that I could nail the parts together. The supports are placed 6 cm away from the top edge to have enough space to install the panels later.

To cover the rounded cut-outs I screwed a sheet of 0.5 mm aluminum onto the rounding using flat head screws. Predrilling is essential to prevent the MDF from splitting.

This entry was posted in Panels, Pedestal. Bookmark the permalink.

8 Responses to Pedestal

  1. sinan says:

    his ehr geehrte Herr Mikeey Schulz,
    dürfte ich sie bitten wie groß ist das Firepanel maße. ?
    ich habe ein 737 throtle von jetmax ohne Motor .Könnten sie mir helfen wie ich mein Throtle motorisieren kann ?


    • Mickey says:

      In this version the measurement is 298 x 72 mm. But I after the rebuild of my pedestal I’m designing a new version.

  2. AZWildk4t says:

    Hi Mickey,

    Did you install the dividers yet? I am curious what you used. My thought was to find some T-bars and then drill holes exactly where the panels would be placed. Dzus rails are quite expensive.

    • Mickey says:

      No, I haven’t done this yet. I will do this when I have made some panels for the pedestal. The T-bar soluion sounds good. Use 3 or 4mm Aluminum so you can tap a M4 thread to it.

  3. Amir says:

    Viel Dank erstmal, ohne deine Tutorial wäre ich jetzt wahrscheinlich noch bei Null…
    Ist es möglich das ganze alleine zu bauen, oder benötigt man da schon etwas hilfe?

    • Mickey says:

      Ich mache es z.B. allein. Ich bin aber auch noch bei den handwerklichen Themen. Da fühle ich mich noch zu Hause. Mal sehen, wie es wird, wenn die Elektronikthemen kommen. Insbesondere der Throttle macht mir richtig Angst. Aber man kann sich natürlich überall im Internet Hilfe holen, was sas Know How angeht. Insofern ist man ja nie wirklich allein.

  4. Dedalos says:

    hi i like to concratulate you for this nice work. Can you tell me please the dimension of the fire panel
    thank you
