Front Ceiling

This project was inspired by the outstanding documentation on www.flightdeck737.be.

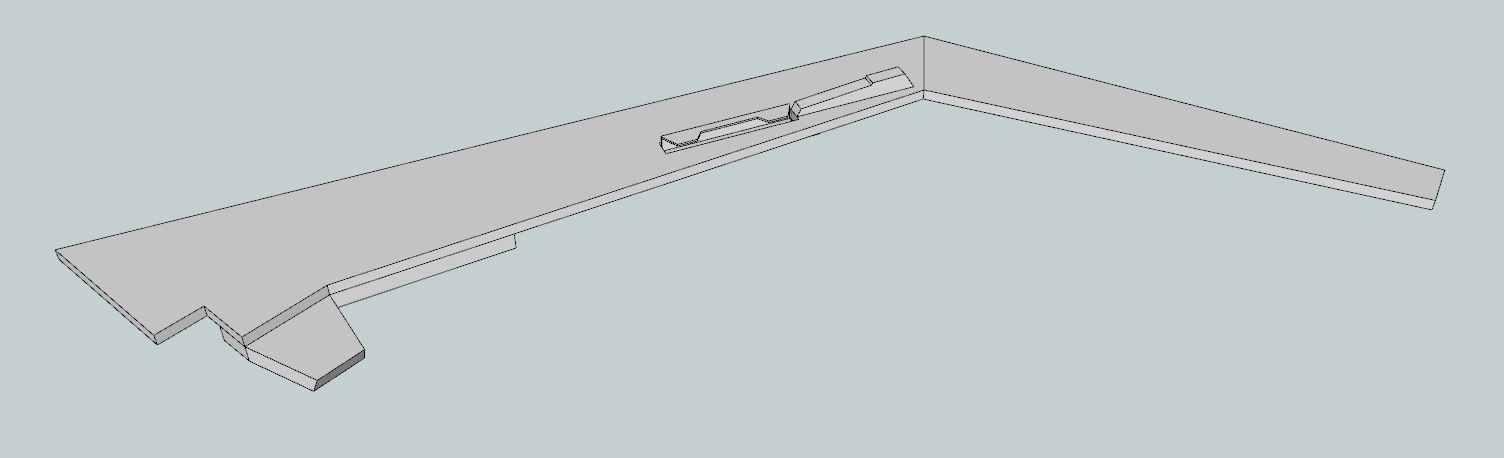

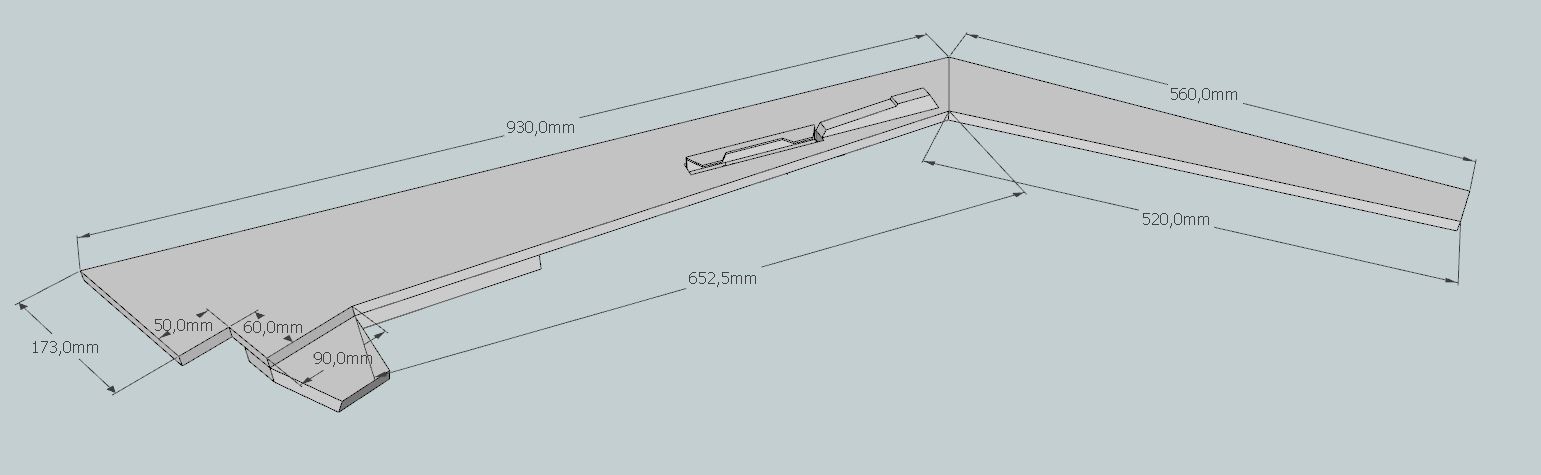

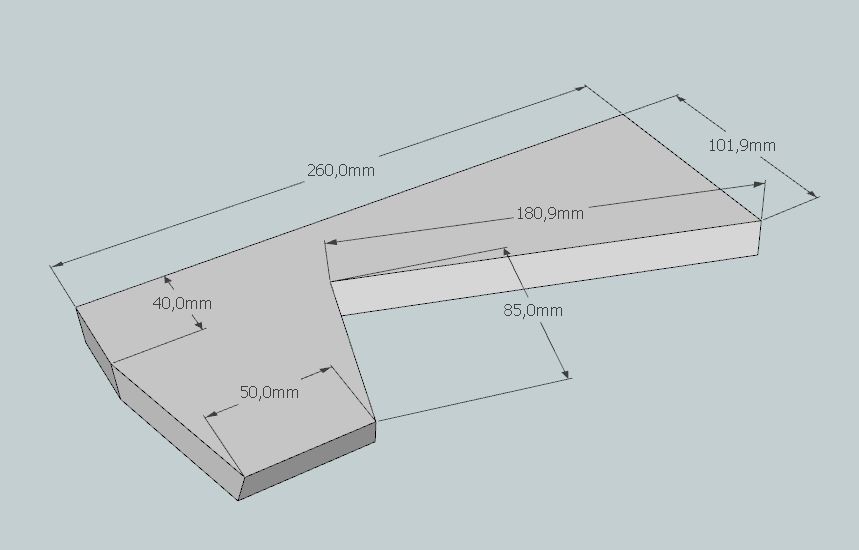

The Front Ceiling is screwed directly onto my window frame. It brings an additional stiffness to the connected front and side frames. The measurements in the sketchup files are taken from my finished build. So you shouldn't use them as they are but adapt them to your winow frames.

The used materials are:

  • 12mm MDF
  • 18mm MDF
  • 6mm Plywood
  • 15mm Plywood
  • 20x20mm aluminum U-profile with a thickness of 2mm

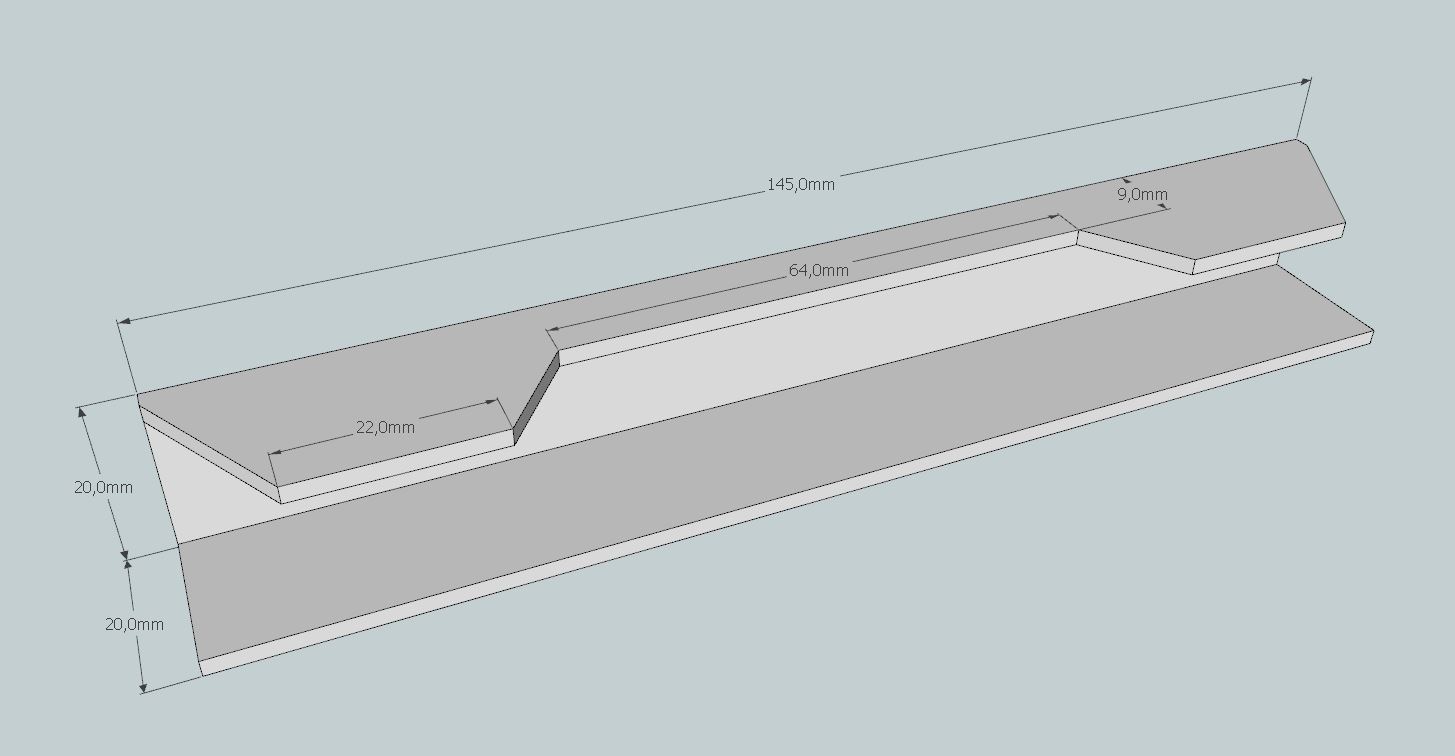

  • 2 handles with a width of 106mm
